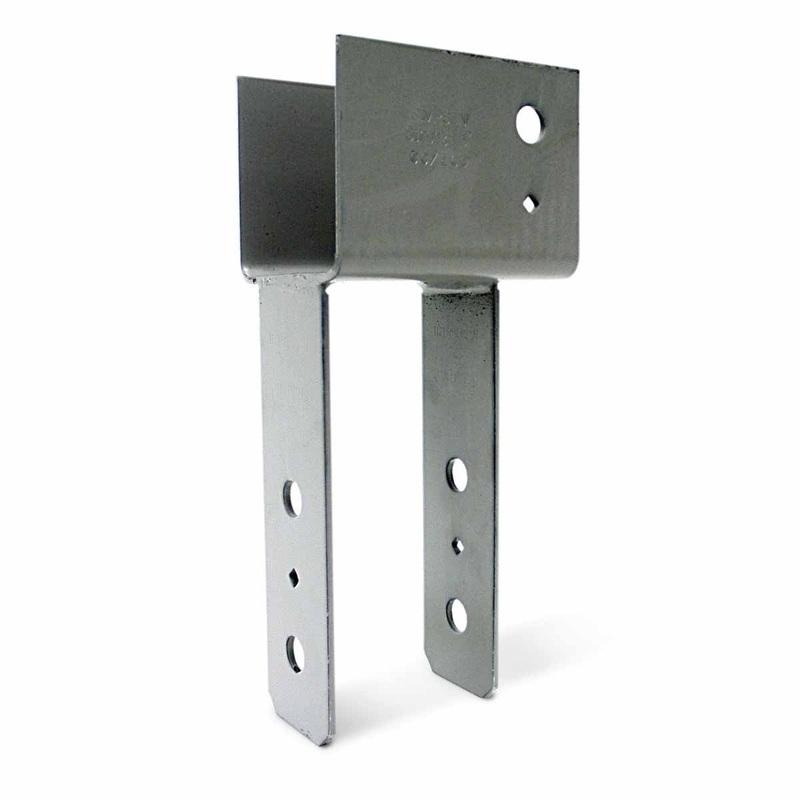

Simpson Strong-Tie ECC7 1/8-4 Description

The Simpson ECC7 1/8-4 End Column Cap enhances the strength and stability of your construction projects, providing a durable and reliable column-to-beam connection.

Simpson Strong-Tie ECC7 1/8-4 Includes

• (2) 3/4″ Machine Bolts for Beam
• (2) 3/4″ Machine Bolts for Post

Simpson Strong-Tie ECC7 1/8-4 Features

• Provides strong end-of-beam connection for column-to-beams
• Extended area of the column seat offers additional surface area of bearing to distribute the load
• Made from Steel for durability
• Finished with Gray Paint coating
• Certified welds for strength and loading
• Increased uplift loads for earthquake or wind loading
• Features diamond holes for temporary fastening during installation
• Bolt spacing meets NDS code requirements

Simpson Strong-Tie ECC7 1/8-4 Applications

• End-of-beam applications for wood construction
• Column-to-beam connections in structural projects
• Use with 7x beams and 4x posts/columns

Simpson Strong-Tie ECC7 1/8-4 Installation Overview

1. Align the column cap with the beam and post
2. Secure temporarily using the diamond holes
3. Fasten using the specified bolts for beam and post connections
4. Ensure bolt spacing complies with NDS code requirements

Simpson Strong-Tie ECC7 1/8-4 Specifications

NOTE: This item is made to order and is non-returnable.
