Simpson Strong-Tie RCKW3D-R10 Description

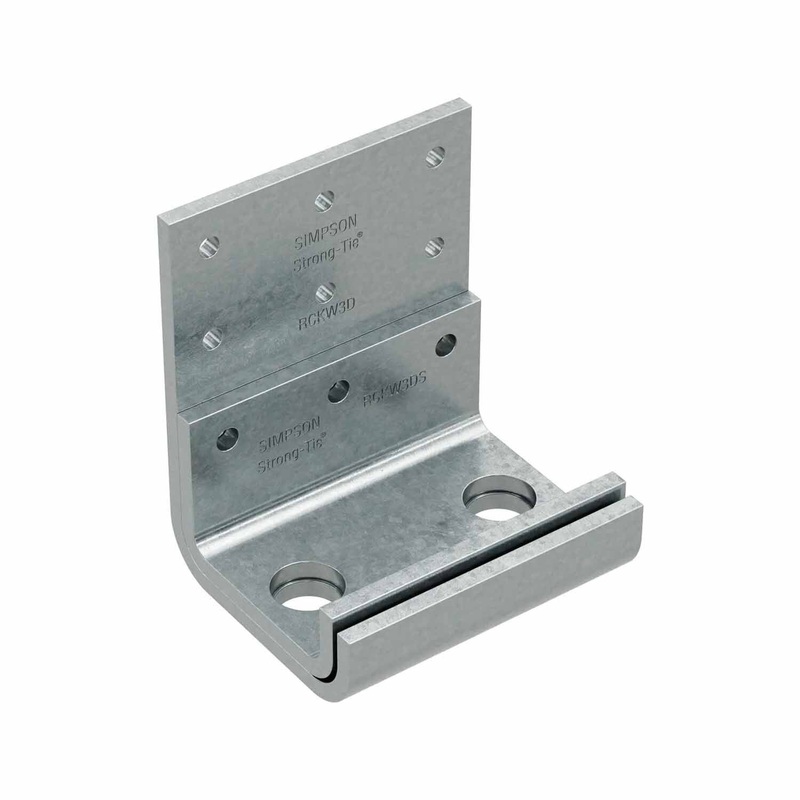

The RCKW3D rigid connector is designed to resist overturning moments at the base of kneewalls and parapets, providing enhanced stability and capacity for 3-5/8″ framed kneewalls.

Simpson Strong-Tie RCKW3D-R10 Includes

• (10) RCKW3D Rigid Kneewall Connector Clips

Simpson Strong-Tie RCKW3D-R10 Features

• Resists overturning moments at the base of kneewalls and parapets
• Two-anchor design for enhanced stability
• Compatible with 3-5/8″ framed kneewalls
• G90 Galvanized finish for corrosion resistance
• Optional RCKW3DS stiffener for increased capacity

Simpson Strong-Tie RCKW3D-R10 Applications

• Exterior kneewalls and parapets
• Interior partial-height walls
• Overhead ribbon window conditions

Simpson Strong-Tie RCKW3D-R10 Installation Overview

1. Position the RCKW3D connector at the base of the kneewall or parapet.
2. Secure the connector using the specified anchors.
3. For increased capacity, attach the optional RCKW3DS stiffener.

Simpson Strong-Tie RCKW3D-R10 Specifications
